Description
Stainless steel elbow is widely used. Stainless steel elbows for general use are rolled by common carbon structural steel, low alloy structural steel or alloy structural steel, with a large output. They are mainly used as pipes or structural parts for transporting fluid.
According to the pipe type can be divided into: 1. Machining, bearing sleeve, processing machinery accessories, etc. 2. Gas transportation, water power generation fluid and other electrical pipelines. 3. There are a lot of underground pipelines to transport, underground water to be extracted when building, boiler hot water transportation and other construction pipelines. 4. Anti static pipe of wind power plant.
It is classified according to different uses: 1. Supplied according to chemical composition and mechanical function; 2. Supplied according to mechanical function; 3. Supplied according to hydraulic test. If the steel pipes supplied according to a and B are used to accept liquid pressure, hydrostatic test shall also be conducted. 4. There are many kinds of seamless pipes for special purposes, such as seamless pipes for boilers, stainless steel elbows for geology and seamless pipes for petroleum.
Specification
Standard:GB / ANSI /JIS / DIN
Material:SS304 SS316
Usage:Joining Pipe Lines
Characteristic
Two methods of butt welding are usually used to form the end face of stainless steel pipe by hot welding or butt welding.
The stainless steel elbow not only saves space and reduces the weight, but also ensures that the joint will not leak and has good sealing performance.
The stainless steel elbow has a certain function of corrosion resistance, heat resistance and wear resistance. It is usually used in power station, chemical industry, petroleum and other equipment. Due to poor weldability of stainless steel stamping elbow, attention should be paid to welding process, heat treatment premise and selection of suitable welding electrode.
Technical data sheet
304 stainless steel pipe fittings stainless steel elbow technical data sheet as below:
| DN |
Outside diameter |
90 degree elbow |
| A series |
B series |
Long radius |
Short radius |
| 15 |
213 |
18 |
38 |
- |
| 20 |
26.9 |
25 |
38 |
- |
| 25 |
33.7 |
32 |
38 |
25 |
| 32 |
42.4 |
38 |
48 |
32 |
| 40 |
483 |
45 |
57 |
38 |
| 50 |
603 |
57 |
76 |
51 |
| 65 |
76.1(73) |
76 |
95 |
64 |
| 80 |
88.9 |
89 |
114 |
76 |
| 100 |
1143 |
108 |
152 |
2 |
| 125 |
139.7 |
133 |
190 |
127 |
| 150 |
1683 |
159 |
229 |
152 |
| 200 |
219.1 |
219 |
305 |
203 |
| 250 |
273 |
273 |
381 |
254 |
| 300 |
323.9 |
325 |
457 |
305 |
| 350 |
355.6 |
377 |
533 |
356 |
| 400 |
406.4 |
426 |
610 |
406 |
| 450 |
457 |
478 |
686 |
457 |
| 500 |
508 |
529 |
762 |
508 |
| 550 |
559 |
- |
838 |
559 |
| 600 |
610 |
630 |
914 |
610 |
| 650 |
660 |
- |
991 |
660 |
| 700 |
711 |
720 |
1067 |
711 |
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
Product Tags:
|
|

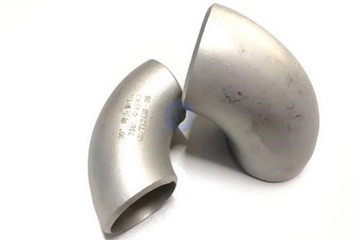

Structural Steel Joining Pipe ANSI SS304 Pipe Elbow Images
|
